Corner pusher
VDS01PH006

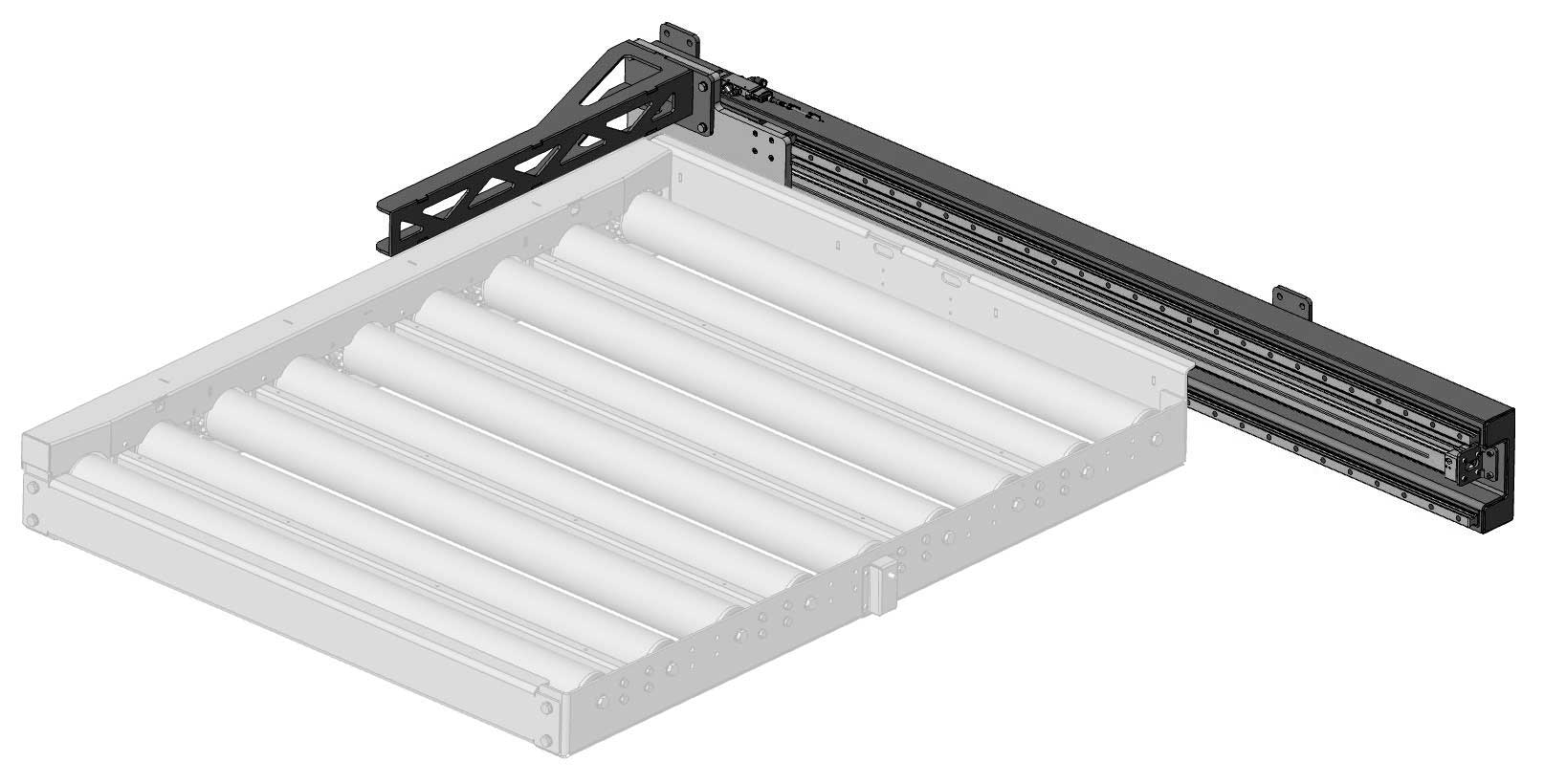

The corner pusher is placed at the end of a pallet roller conveyor. It is used to push pallets sideways from one roller conveyor to the other. The pusher works electro-pneumatically and is equipped with guides to guarantee a smooth movement. It consists of a milled plate steel chassis, an aluminum connecting plate and a plate steel arm.
EXTRA DRAWINGS:

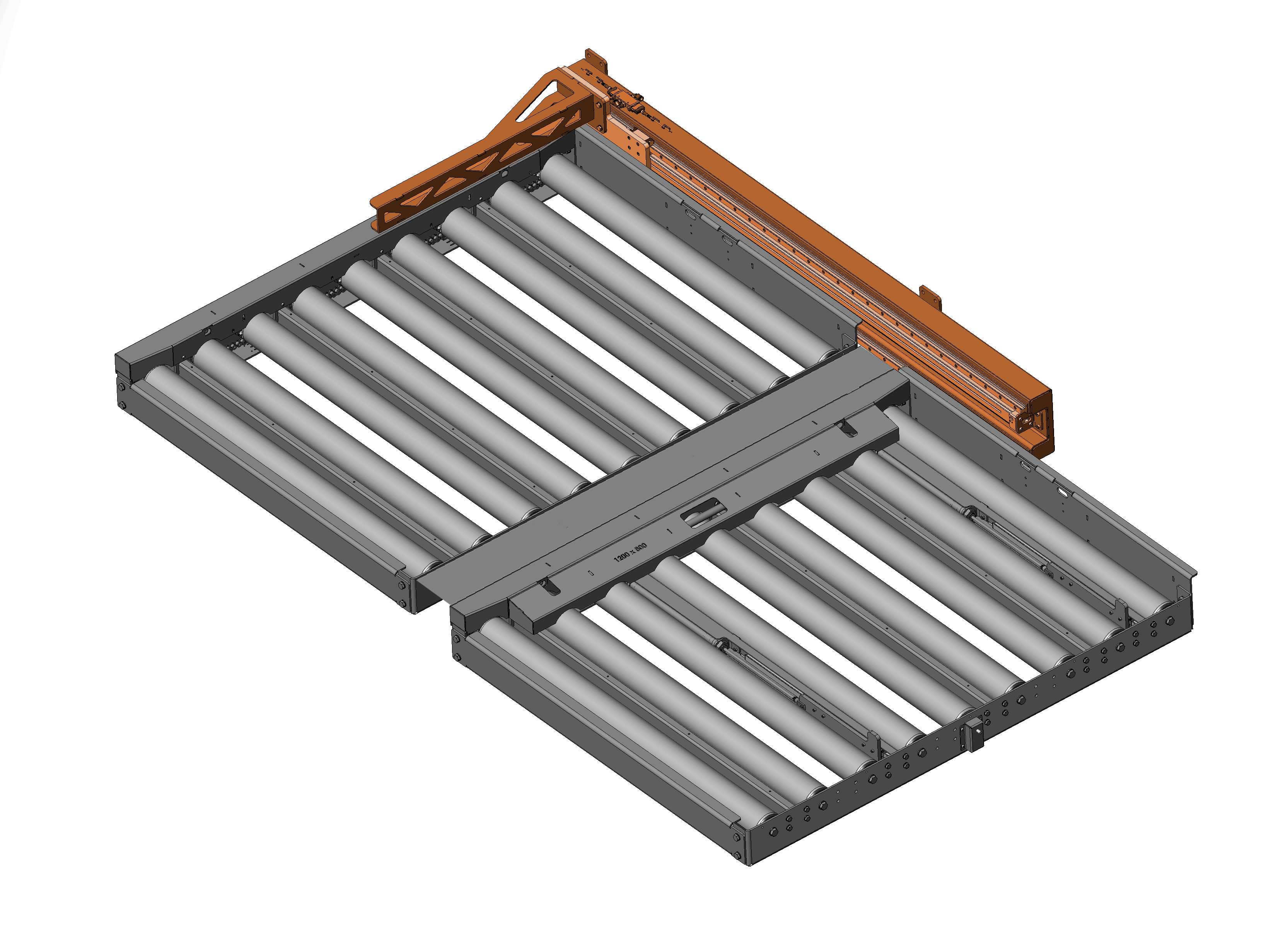

- Corner pusher mounted behind pallet roller conveyor
TECHNICAL DRAWING:
VARIATIONS:
Roller conveyors PC1200
(europallet) output left
PC1200 roller conveyors
(europallet) output right
Roller conveyors PC1400
(Industrial pallet) output left
Roller conveyors PC1400
(industrial pallet) output right
SPECIFICATIONS:
Weight:
PC1200 = 60 kg
PC1400 = 100 kg
Dimensions HxWxL:
PC1200 = 300x865x1910mm
PC1400 = 300x865x2160mm
Max. speed: 2m/s
Max. capacity: 50 kg (295N push force)
Operating temperature: -5 to +50 °C
Operating voltage: 24V DC / 1Watt
Compressed air supply: PUN-H Ø8mm
COMPONENTS:
Conductors:
Bosch-Rexroth SNS20 length 1850mm/2100mm accuracy H / preload C1
Drive:
Festo piston rodless cylinder DGC-K Ø25 length 1500mm/1750mm
Festo double acting valve VUVG L14 5/3C with closed center position
